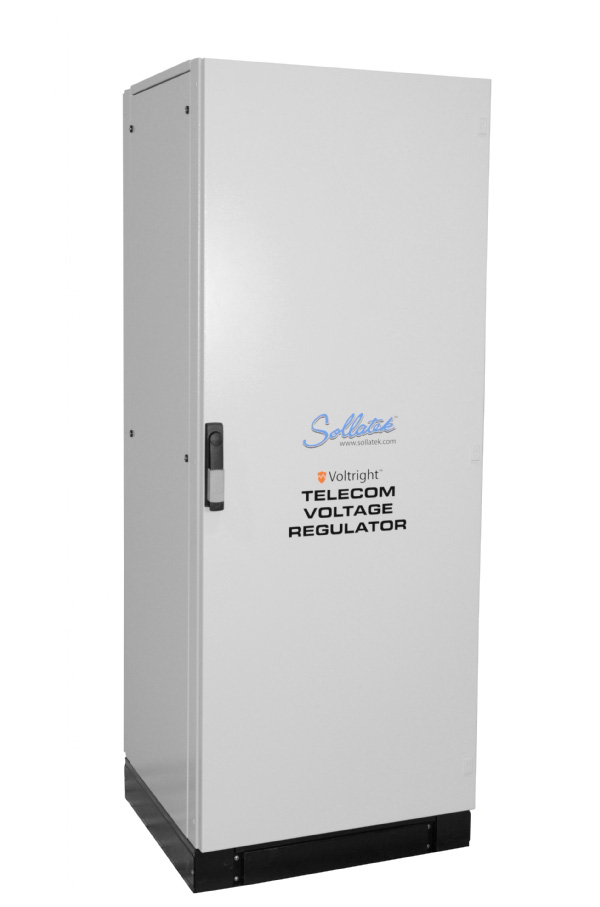

Telecom Voltage Regulator

Model: TVR-3XXX-22
XXX = kVA from 10kVA to 200kVA

Features:

Special features include:

Description

The Telecoms Voltage Regulator (TVR) is an enhanced version of the Sollatek AVR and designed especially to provide the high level of protection and capability required for telecommunication applications. With many telecom sites moving onto single phase power, the TVR uses the phase selector to allow for continuous voltage regulation even when 1 or 2 phases are missing. While the isolating transformer provides a clean neutral and 10:1 attenuation ratio ensuring that noise on the output is significantly reduced relative to the input. The TVR as standard includes various additional features that would otherwise be provided as optional extras. These include a higher IP rating of 55 (to allow outdoor installation); output circuit breaker, manual by pass and automatic voltage switcher function all make this unit the preferred choice for mission critical applications. With Sollatek’s wide input range (-30% to +22%) and high degree of reliability, makes the TVR the most apt solution for today’s telecom’s needs; whether in remote locations or city centres.
Specification

See datasheet
Downloads
Datasheets
- TVR Data Sheet (536KB)
