Why hasn’t the voltage display changed but my input voltage has changed?

The SVS corrects the input voltage in increments (taps). If the input voltage moves form one tap to another, the output voltage can move visibly but remain within the output parameters of the unit. For example, as per table, if the input voltage is 240V, output is 240V. If the input moves up to 245, the output moves to 218. The LED display will remain unchanged in this instance as the output is still within the parameters (6% accuracy).

Which stabiliser can be used on the output of a generator? SVS range or AVR range?

Either would, both are suitable. Use an AVR if the main equipment are computers or computer like equipment. However, some small generators produce a wave shape may cause problems for the AVR/SVS measurement circuit. You can get very large frequency fluctuation too. Make sure the gen set is rated to at least twice the required current so as to reduce some of these problems. The Sollatek SVS is also Genset compatible and that would be the model of choice for small generators.

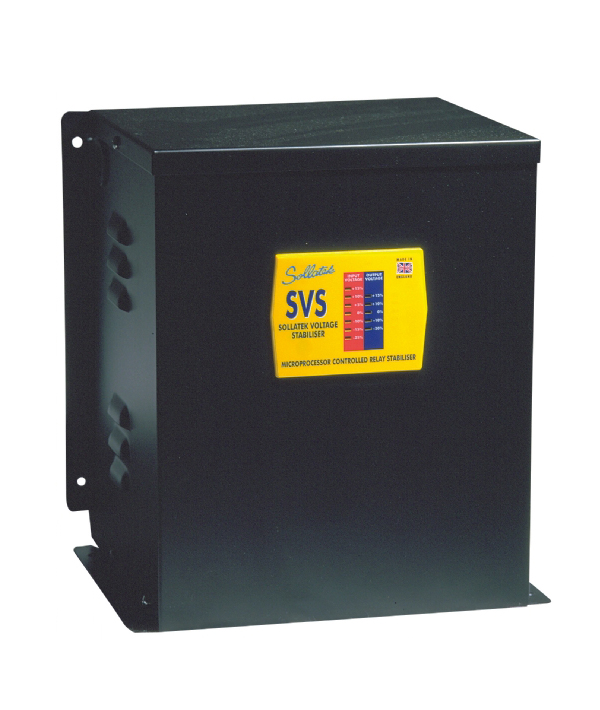

SVS20/35/50/75 WM Voltage Stabiliser up to 75Amps

Home / Voltage Protection / Voltright / Single Phase / Standard: Single Phase - Up to 75 Amps Wall Mount (18kVA) 230V Range / SVS20/35/50/75 WM (Up to 18kVA)

Description

The Sollatek SVS monitors the mains voltage continuously. If the voltage rises or drops, the SVS will stabilise the output to ensure the voltage reaching your equipment remains constant at 230V (+/-6%), within the operating range of the unit. If the input voltage falls below 142V or rises above 295V, the SVS will disconnect the output, thereby protecting the load. Once the mains voltage returns within acceptable limits, the SVS will reconnect the output following a start up delay.

The SVS20, 35, 50 and 75 are heavy duty wall mountable stabilisers with terminal input/output, for direct wiring and secure connectivity.

Specification

Model	SVS20-WM	SVS35-WM	SVS50-WM	SVS75-WM
Output Current	20Amps	35Amps	50Amps	75Amps
VA@230V	4600V	8050V	11500V	17250V
VA@240V	4800V	8400V	12000V	18000V
Weight	20kg	29kg	29kg	45kg
Case type	Metal	Metal	Metal	Metal
AVS function	YES	YES	YES	YES
Startup delay	YES	YES	YES	YES
Spike protection	YES	YES	YES	YES
Dimension (mm)	300 x 200 x 280	330 x 330 x 440	330 x 330 x 440	330 x 330 x 440
Product Code	98220550	98235000	98250000	98275000

Downloads
Brochures
- Voltright SVS Brochure – English (2MB)
Datasheets
- SVS20 WM data sheet (1M)
Instruction Manuals
- SVS20 To 75 Single Phase User Manual – English
Click on the question to get the full answer.

Why hasn’t the voltage display changed but my input voltage has changed?
The SVS corrects the input voltage in increments (taps). If the input voltage moves form one tap to another, the output voltage can move visibly but remain within the output parameters of the unit. For example, as per table, if the input voltage is 240V, output is 240V. If the input moves up to 245, the output moves to 218. The LED display will remain unchanged in this instance as the output is still within the parameters (6% accuracy).
Which stabiliser can be used on the output of a generator? SVS range or AVR range?
Either would, both are suitable. Use an AVR if the main equipment are computers or computer like equipment. However, some small generators produce a wave shape may cause problems for the AVR/SVS measurement circuit. You can get very large frequency fluctuation too. Make sure the gen set is rated to at least twice the required current so as to reduce some of these problems. The Sollatek SVS is also Genset compatible and that would be the model of choice for small generators.
