Why hasn’t the voltage display changed but my input voltage has changed?

The SVS corrects the input voltage in increments (taps). If the input voltage moves form one tap to another, the output voltage can move visibly but remain within the output parameters of the unit. For example, as per table, if the input voltage is 240V, output is 240V. If the input moves up to 245, the output moves to 218. The LED display will remain unchanged in this instance as the output is still within the parameters (6% accuracy).

Which stabiliser can be used on the output of a generator? SVS range or AVR range?

Either would, both are suitable. Use an AVR if the main equipment are computers or computer like equipment. However, some small generators produce a wave shape may cause problems for the AVR/SVS measurement circuit. You can get very large frequency fluctuation too. Make sure the gen set is rated to at least twice the required current so as to reduce some of these problems. The Sollatek SVS is also Genset compatible and that would be the model of choice for small generators.

Home / Voltage Protection / Voltright / Special Voltage / Special voltage and applications / SVS1413-21 Dual Voltage Stabiliser

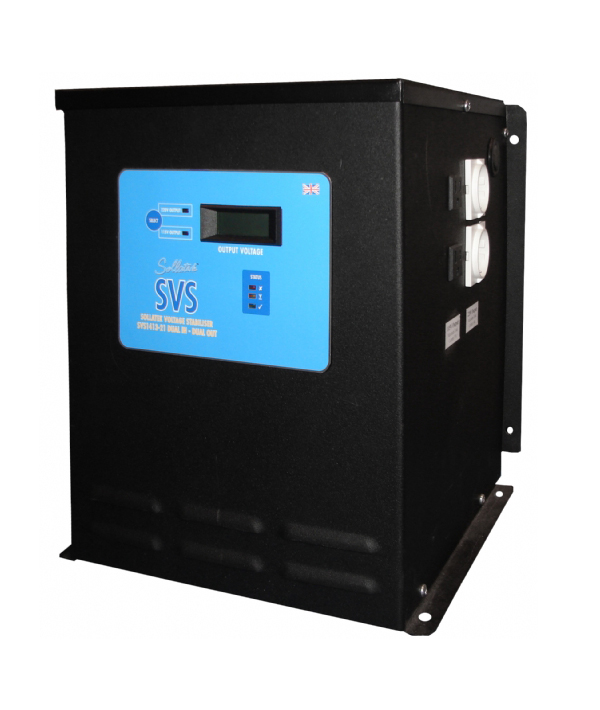

SVS1413-21 Dual Voltage Stabiliser

Voltage Stabilisation And Protection For All Electrical And Electronic Equipment

The Sollatek SVS1413-21 is a dual voltage input, dual voltage output voltage stabiliser. Its input voltages are 127V and 220V, while its output voltages are 115V and 220V, regulated to nominal +/- 6.5%. When the output voltage goes outside the regulation range of the SVS, the output will be disconnected, providing a protective function.

SVS1413-21 Features:

Microprocessor controlled stabiliser
Extremely fast response
Solid state with no moving parts
Very wide Input range (150V – 300V)
Excellent output voltage stability (± 6.5%)
Spike and surge suppression and protection
Incorporates over and under voltage disconnect (AVS™ function) when mains is extreme and outside working limits
Startup delay to allow neutralisation of compressor gases, critical in such applications
Incorporates TIMESAVE™ Function (10 second start-up delay after
long duration powercut)
Frequency and voltage measurement smoothing via software
to filter noise
Digital display for input and output voltage
Direct wiring input
Euro and US socket output

Description

The SVS1413-21 is a precise voltage stabiliser designed to protect your appliances against the harmful consequences of an unpredictable power supply, ensuring optimal performance and extending the appliance life. It operates at input voltages of 127 V and 220 V, delivering regulated output voltages of 115 V and 220 V with a precision of ± 6.5%, enabling a stable power supply for your appliances. The current that can be taken from each output is specified in the technical specification. When the output voltage goes outside the regulation range of the SVS, the output will be disconnected, providing a protective function. The two output voltages are displayed on the front panel meter, with a button to switch between them. There is also a status display showing whether output is good, bad or waiting to reconnect after disconnection.

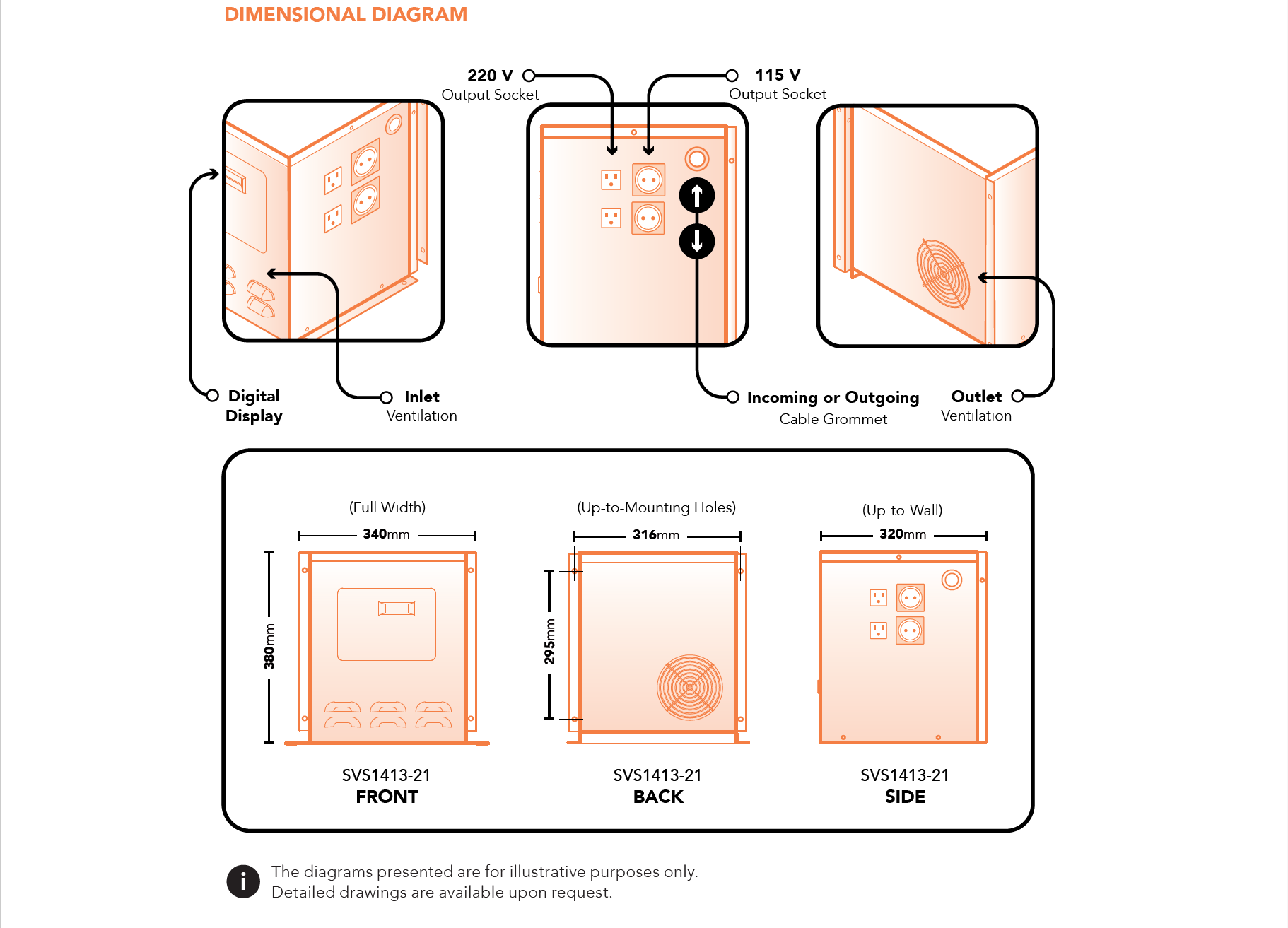

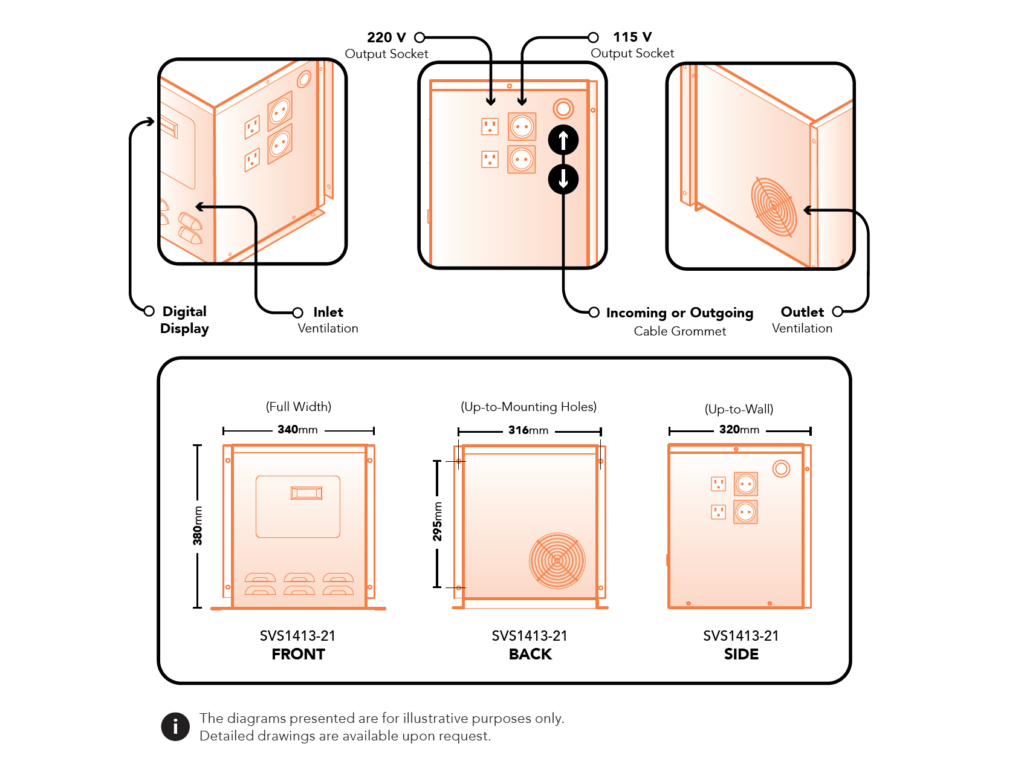

Dimensional Diagram

Downloads
Datasheets
- SVS1413 Datasheet (836KB)
Instruction Manuals
- SVS20 To 75 Single Phase User Manual – English (2MB)
Click on the question to get the full answer.

Why hasn’t the voltage display changed but my input voltage has changed?
The SVS corrects the input voltage in increments (taps). If the input voltage moves form one tap to another, the output voltage can move visibly but remain within the output parameters of the unit. For example, as per table, if the input voltage is 240V, output is 240V. If the input moves up to 245, the output moves to 218. The LED display will remain unchanged in this instance as the output is still within the parameters (6% accuracy).
Which stabiliser can be used on the output of a generator? SVS range or AVR range?
Either would, both are suitable. Use an AVR if the main equipment are computers or computer like equipment. However, some small generators produce a wave shape may cause problems for the AVR/SVS measurement circuit. You can get very large frequency fluctuation too. Make sure the gen set is rated to at least twice the required current so as to reduce some of these problems. The Sollatek SVS is also Genset compatible and that would be the model of choice for small generators.

Voltage	220V	115V
Input voltage	127 or 220	127 or 220
Stabilisation input	220V -26% + 19%	115V -26% +19%
Stabilisation output	220V +/- 6%	115V +/-6%
Overvoltage disconnect	249	N/A
Overvoltage reconnect	247	N/A
Undervoltage disconnect	177	97.5
Undervoltage reconnect	187	97.5
Startup delay	10s	10s
Frequency	45 to 75Hz	45 to 75Hz
