Description

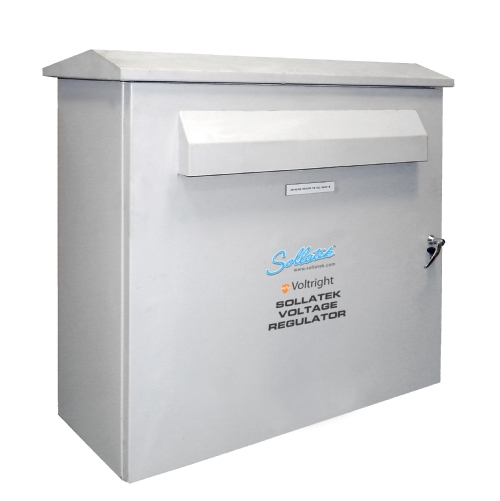

Sollatek’s SVR is a variation of our renowned solid state AVR (Automatically Voltage Regulator); designed specifically to remain operational when 1 or even 2 phases are down. The SVR’s phase selector continuously monitors incoming power to select the best available phase. For regulation, this phase is then split equally between the 3 transformers which in turn provide 3 separate outputs, each with 1/3 capacity of the incoming single phase supply. The SVR as standard includes a higher IP rating of 44 (to allow outdoor installation); output circuit breaker, manual by pass and automatic voltage switch function all make this unit the preferred choice for mission critical applications. With Sollatek’s wide input range (-30% to +22%) and high degree of reliability, the SVR provides a stable output and this makes it the most apt solution for today’s telecom’s needs.

Equipped with:
- Automatic Voltage Switcher for automatic over and under voltage protection.
- Output Circuit Breaker to protect against overload and short circuit.
- Digital Meters to monitor incoming voltage of all phases and output voltage and current.
- Changeover Switch allows manual bypassing of AVR to run load directly from utility supply.
- Best phase selection of those available.
- Outdoor enclosure with IP rating of 44.
Specification

See Datasheet
Downloads
Datasheets
- SVR Data Sheet (521KB)
