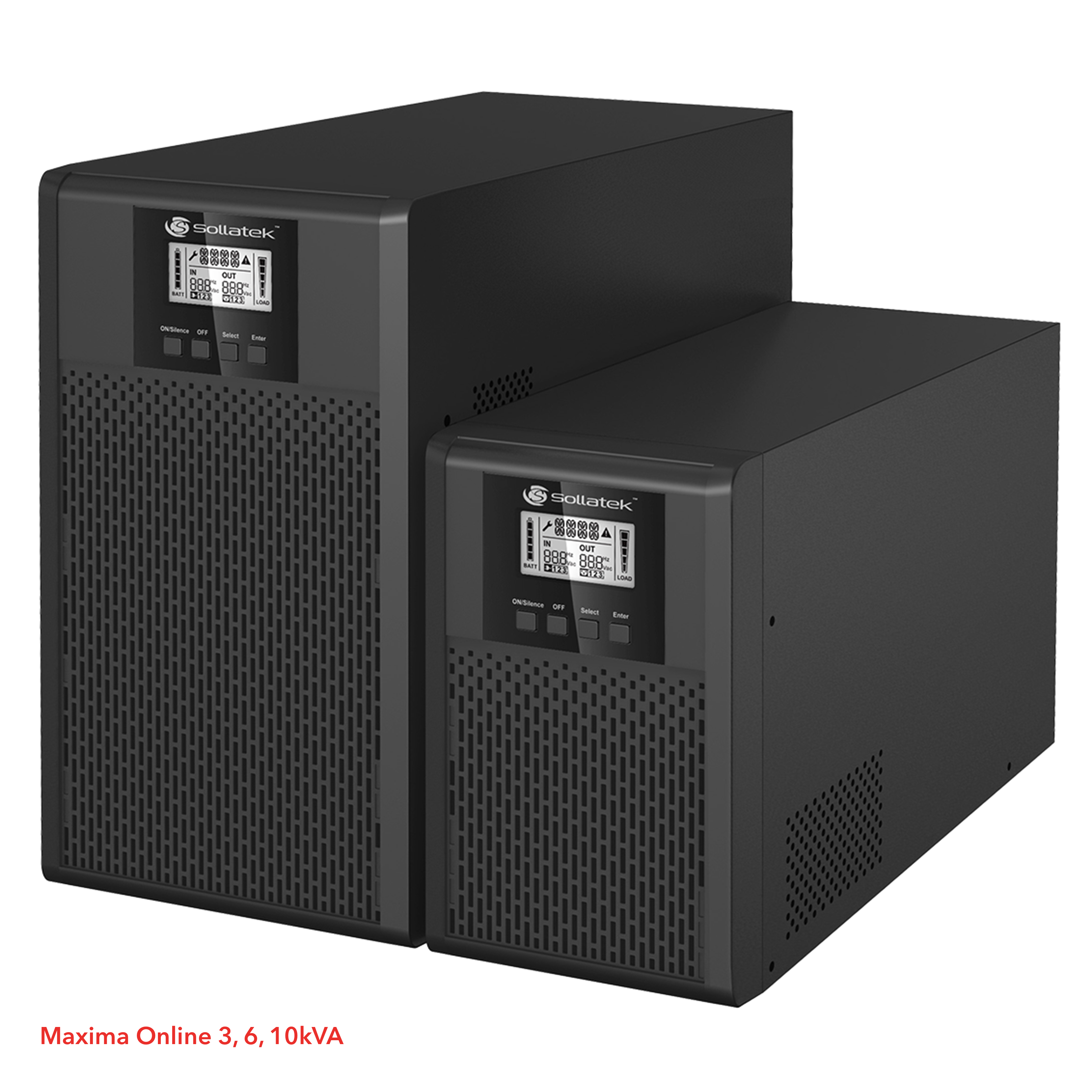

Maxima Online (3, 6, 10 kVA)

Uninterruptible Power Supply

The Sollatek Maxima Online Series UPS shields critical systems from any power disturbance, ranging from minor voltage dips to full-scale outages. With models covering 3 kVA to 10 kVA, it adapts to diverse demands with a 0.9 power factor and achieves up to 98% efficiency to help reduce costs. The True Double-Conversion design and advanced DSP control guarantee precision under harsh mains conditions, while a wide input range, CVCF support and parallel operation (up to three units) ensure flexible scalability.

Applications:

Data Centre
Telecommunications
Security and Surveillance System
Multimedia Equipment

FEATURES

True Double-Conversion & DSP Control: High adaptability to harsh mains conditions while providing precise, reliable power management
High Efficiency & ECO Mode: Operates with a 0.9 output power factor for energy savings, and supports an energy-saving ECO mode
Wide Input Range & CVCF Support: Accepts a wide voltage/frequency range and maintains constant voltage & frequency for sensitive load
Parallel Operation: Easily increase capacity or redundancy, up to three units in parallel using an optional parallel card
Intelligent Communication & USB-HID: For remote monitoring, plus USB-HID capability for driver-free UPS management
Comprehensive Protections: Includes OVCD (optional on 3kVA), fan lock detection, over-temp. detection & overload warnings for reliability
Compact & Quiet Design: Requires minimal installation space, while low audible noise ensures a comfortable environment.
Programmable LCD Display: Offers quick UPS parameter configuration and real-time monitoring for easy setup and management
CE Compliance: Meets stringent safety and performance standards for assured quality

Description

Its intelligent communication slot and USB-HID ports enable seamless monitoring without the need of extra software. Featuring OVCD (optional on 3kVA models), fan lock detection, and overload warnings, it bolsters reliability for mission-critical infrastructure. Compact, quiet, and fully CE-compliant, the Maxima Online UPS delivers continuous, worry-free power for any mission critical workflow.

Description Product Code

Maxima Online 3kVA 1Ph 220V 6x12V9Ah 97617302

Maxima Online 6kVA 1Ph 220V 16x12V9Ah 97617602

Maxima Online 10kVA 1Ph 220V Tower 97617103

Downloads
Datasheets
- UPS – Maxima Online 3, 6, 10kVA Datasheet
Click on the question to get the full answer.

Maxima Online Models	3K	6K	10K
Capacity (VA/W)	3000 VA / 2700 W	6000 VA / 5400 W	10000 VA / 9000 W
Unit Dimensions (WxDxH)	190 x 393 x 327 mm	248 x 500 x 616 mm	248 x 500 x 616 mm

Load Percent	25%	50%	75%	100%
Maxima Online 3K 3000 VA / 2700 W	Enquire for further Information	Enquire for further Information	Enquire for further Information	4.0 mins
Maxima Online 6K 6000 VA / 5400 W	28.0 mins	9.9 mins	6.0 mins	2.0 mins
