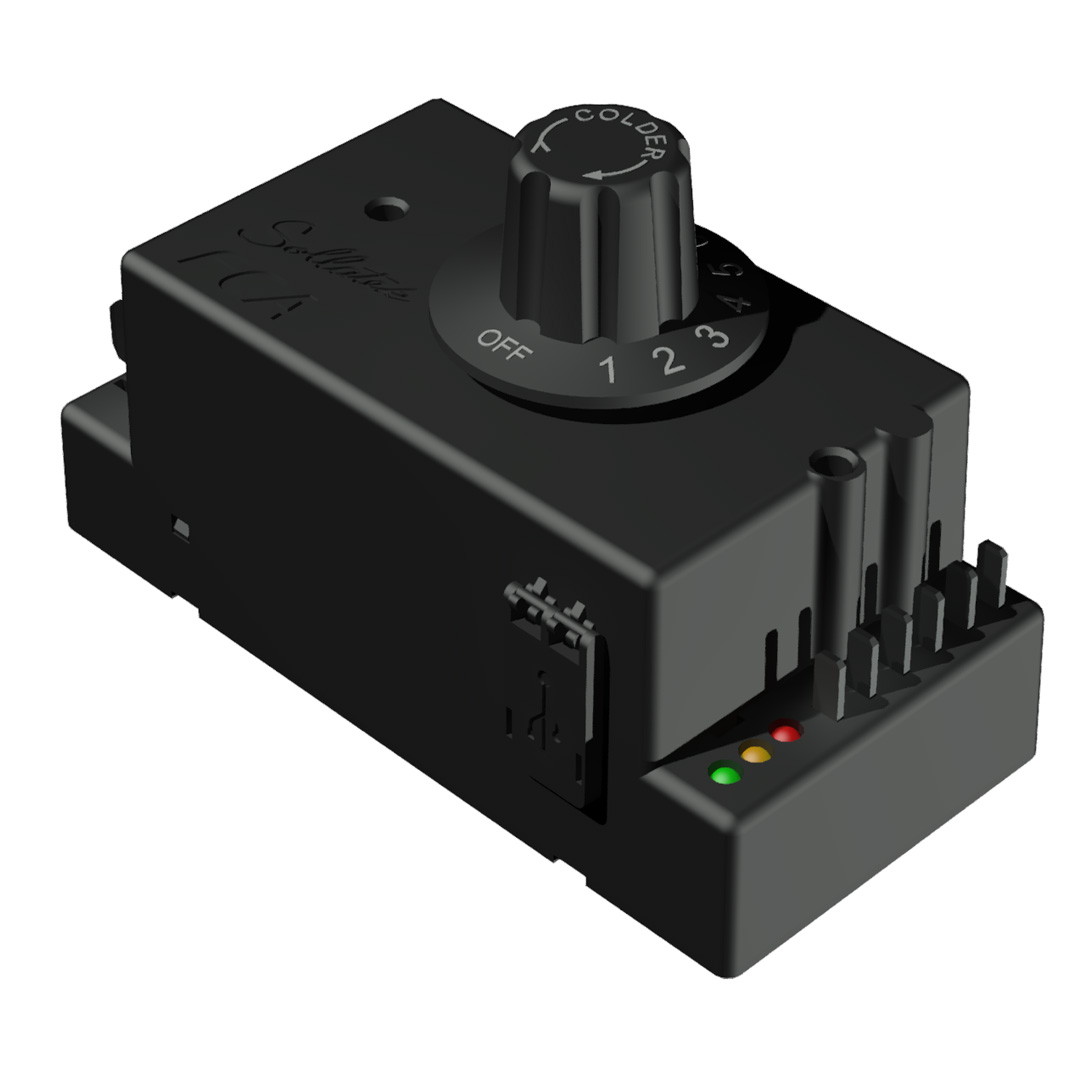

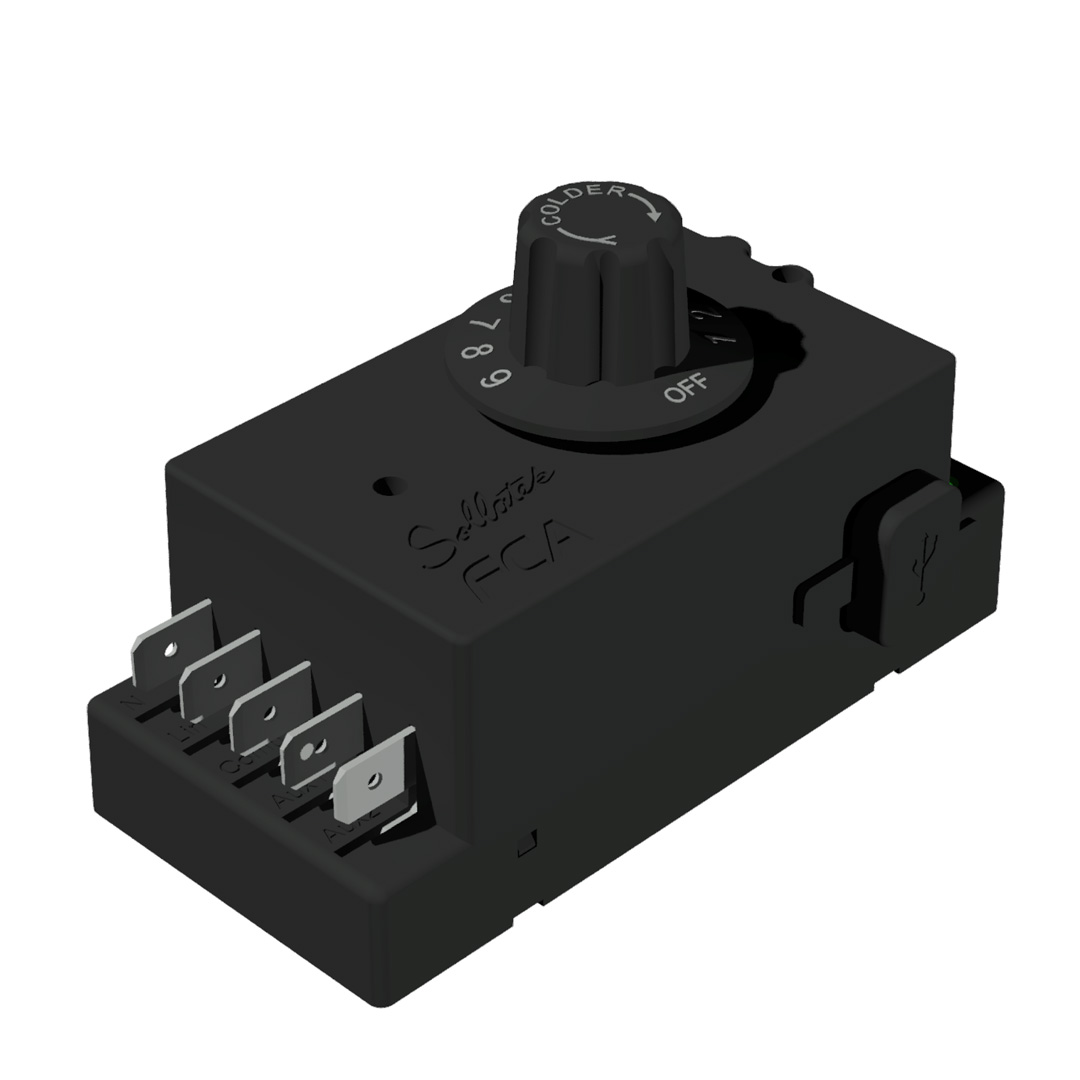

FreoCom FCAx3

Advanced Temperature Controller

The FCAx3 ensures accurate temperature control to monitor coolers, fridges and freezers with advanced energy saving features and connectivity.

It’s mounted to provide an easy drop-in replacement to mechanical thermostats whilst connecting a variety of temperature displays with a wide range of colours and sizes.

Features:

Advanced EMD (Energy Management Device)
Energy Saving (Fan Control/Temperature Setback)
Controls compressor, lights, fans and defrost heater
Up to 3 Input and Output
75V – 300V Universal Voltage
Bluetooth Connectivity Ready
Fully Programmable Parameter via SPP programmer device
Time and temperature controlled defrost
Zero Voltage Switch (ZVX)

Options

Internal Bluetooth Low Energy (BLE)
External Plug-In Bluetooth BLE (GBR)
LED Display (FDM3)

Description
The FCAx3 is the perfect device for panel mounting with a user-adjustable dial and fully programmable parameter settings.

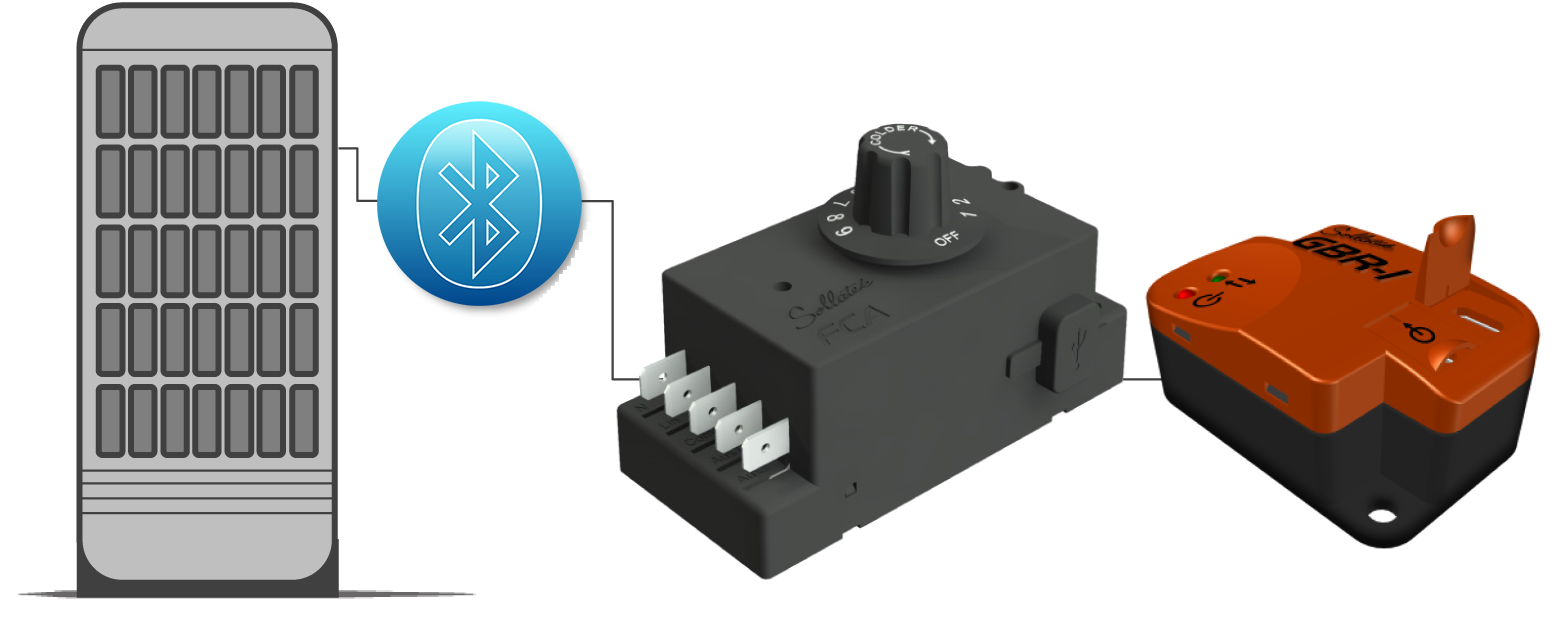

Choose between an Internal Bluetooth BLE module or the flexibility of a Plug-In External Bluetooth BLE Module (GBR) for:
- Identifying Assets
- Capturing Data to be Analysed for Sales and Technical Purposes
- Customer Engagement
The FCAx3 is the perfect device for panel mounting with a user-adjustable dial and fully programmable parameter settings.

The optional Digital Display (FDM3) provides flexibility should there be a requirement for showing the temperature and interacting with the FCAx3 parameter settings.

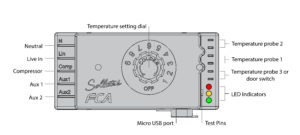

FCAx3 Overview

Specification

Current Rating	FCA13: 16A FCA23: 16A +5A FCA33: 16A + 2x5A
Weight	135g
Dimensions (mm)	90.3 x 45.6 x 55.6 mm
No. Inputs	2 x Temperature Probes & 1 x Door Switch
No. Control Outputs	Max 3 depending on model
Operating Voltage	75 to 300V

Stock No	Description
92373100	FCA13 16A 110/220V
92373200	FCA23 16A + 5A 110/220V
92373300	FCA33 16A + 2x5A 110/220V

Downloads
Brochures
- Sollatek Controller and Connectivity Brochure (7MB)
- FCAx2 vs FCAx3 Comparison Sheet (139KB)
Datasheets
- FCAx3 Datasheet – English
Instruction Manuals
- FCAx3 User Manual – English
- FCAx3 User Manual – Portuguese
