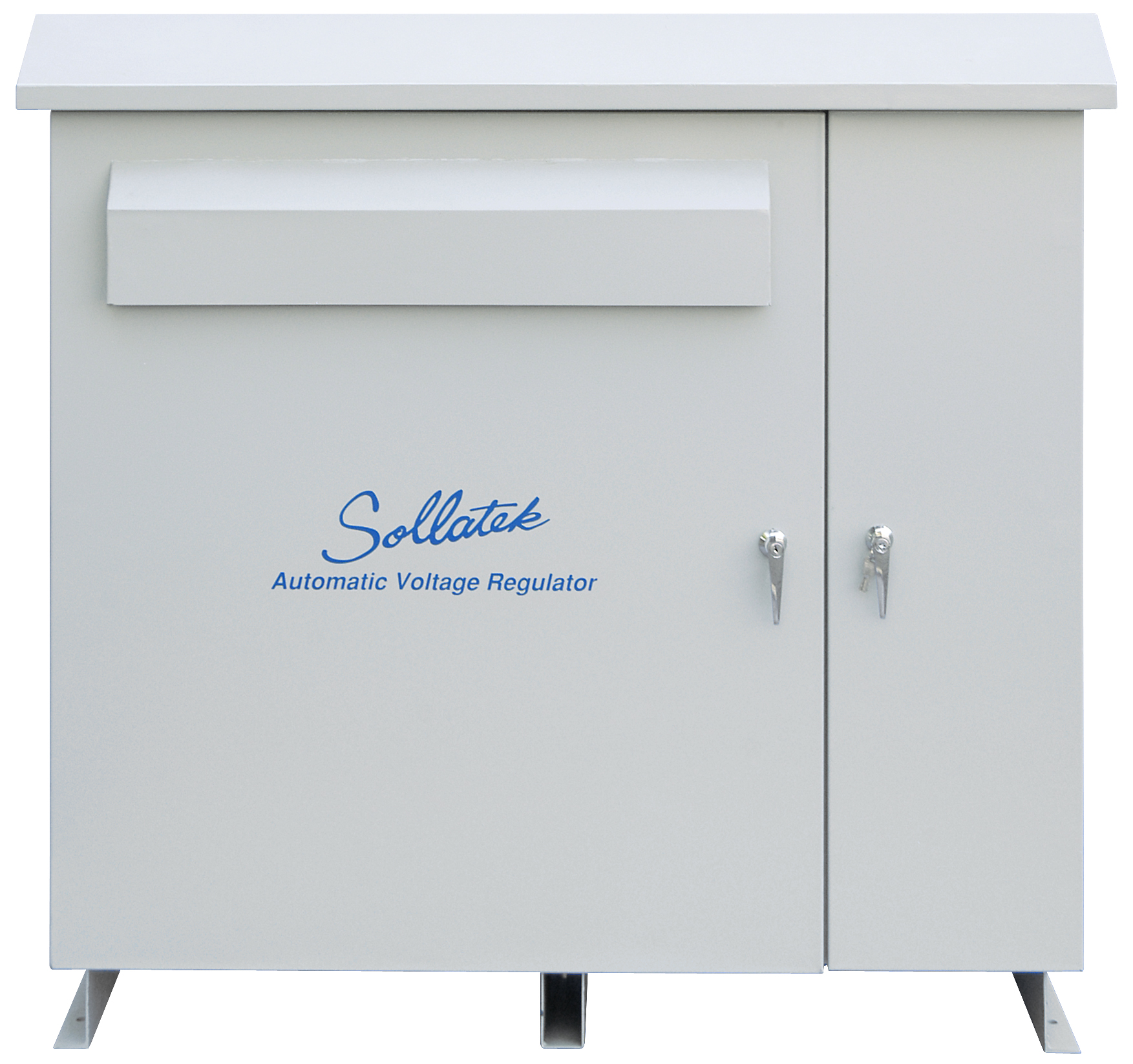

AVR3x50PTZ (Sollatek Outdoor)

Three Phase Automatic Voltage Regulator With Isolating Transformers

The AVR3x50PTZ is an advanced high-performance three-phase solid state voltage regulator designed to regulate voltage in demanding outdoor industrial and commercial environments.

Features:

Wide input range of -30% to +22%
Output accuracy of 4%
Solid state stabiliser with no moving parts – no maintenance required
Ultra-fast operation
Wide input frequency tolerance allows the unit to function properly in areas of severe voltage disturbances
High overload capability with up to 150% for 4 minutes
Very low losses and minimal heat dissipation due to an efficiency of over 96% at full load
IP44 outdoor enclosure
Easy access cabinet with lockable doors
Galvanised steel enclosure with high anti-corrosion paint finish
Warranty of 2 years. Sollatek provides full backup support with local support in over twenty countries worldwide

Suitable For:

Satellite and mobile phone operators
Refrigeration equipment
Telecom infrastructure companies
Embassies for reliable electrification of their posts
Medical systems for digital imaging, scanning and X-ray equipment
Offices and factories

Description
The AVR consists of three identical single-phase regulator units that work together to monitor and adjust the output voltage within a narrow range for your equipment’s safe and efficient operation.

The AVR3x50PTZ has a very wide input voltage range of -30% to +22% making it suitable even in areas with a very erratic supply. It maintains an output accuracy of ±4%, which makes it ideal for even the most sensitive equipment.

The AVR uses isolating transformers to isolate the potential voltages from the source to the load, with no input neutral, providing protection against grounding issues and preventing electric shock. The transformers also reduce electrical noise and interference and offer surge and spike protection.

The AVR3x50PTZ range is fully electronic and has no moving parts, which makes it highly reliable and accurate with fast response times. It is enclosed in an IP44 enclosure, making it suitable for installation in outdoor and harsh environments that are susceptible to dust and water splashes.

Overall, the AVR3x50PTZ is a highly reliable and accurate voltage regulator designed to provide safe and efficient equipment operation even in the harshest voltage and environmental conditions.

Equipped With
- Automatic Voltage Switcher to protect against very low and very high voltage
- Input Circuit Breaker protecting the AVR
- Output Circuit Breaker protecting the load in the event of a short circuit or overload
- Isolating Transformer
- Digital Meters for Input and output voltage, output current & frequency
- Changeover Switch to power the load direct from the utility supply
- Class I & II Surge Protection Device

Specification

Input
Input voltage	380 V -30% to +22%
Maximum Input Current	Can withstand >10% THD from the supply
Frequency range	45 Hz to 75 Hz
Additional Voltage THD	<0.2% at input (tested at 100% linear load) (No PWM methods used)
Output
Output Accuracy	380 V ±4%
Maximum Output Current/phase	50 A
Maximum Output Power	34.5 kVA
